- Detail -

EUROPE STANDARD MORTISE LOCK

e-marks mortise locks with full range of function meet different demand for commercial, institutional and industrial applications.



Features

More than 10 types of lock combinations; versatile selections to fit different room’s requirement.

For single wood or hollow metal doors with thickness 40 mm to 50 mm.

For residential, commercial, industrial and institution buildings where high security is required.

Outside lever can be set to "free operating".

Full reversible.

Conform to EN12209








Specifications


  • Lock case: Zinc plated steel, 6-17/20" (174 mm) x 4-33/100" (110 mm) x 7/10" (18 mm)
  • Faceplate: Stainless steel or solid brass, 9-1/2" (241 mm) x 43/50" (22 mm)
  • Backset: 60 mm
  • Latchbolt: Two-piece stainless steel, 12.5 mm  projection.

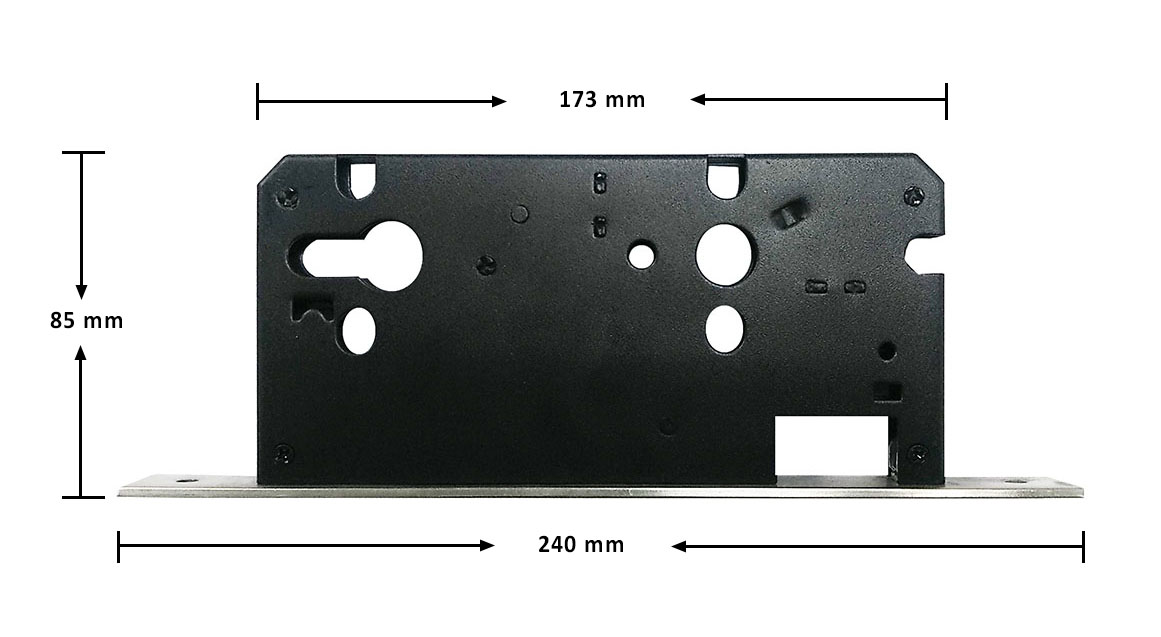

  • Dimensions:
          A: 9-1/2" (241mm)
          B: 6- 17/20" (174mm)
          C: 4-33/100" (110mm)
          D: 43/50" (22mm)
          E: 7/10" (18mm)





Lever Trim


Optional



LT01


LT02


LT03


LS03


LS08






Lever Trim with Escutcheon



Optional




LS24

LS30





Product List


Model Function Certification
MU1010 Passage  CE
MU1040 Privacy  CE
MU1070 Classroom CE
MU1080 Storeroom CE
MU1456 Dormitory CE
MU1460 Dead lock CE
MU1462 Dead lock  CE
MU1464 Dead lock CE
MU1466 Store Door CE
MU1080EL Storeroom / Electrical Fail safe CE
MU1080EU Storeroom / Electrical Fail secure CE
